Okay, so today I wanted to mess around with creating a basketball court layout in CAD. I’ve been doing a lot of design work lately, and I thought, why not try something different? Plus, I’ve always been a big basketball fan, so it seemed like a fun project.
First off, I needed some reliable CAD blocks. You know, the pre-drawn components you can just drop into your design. I didn’t want to draw a basketball court from scratch, that’s just too much work. So, I hit up the internet, did some digging on those CAD sharing sites.
There are tons of these sites out there. Some are great, some are, well, not so great. I was mainly looking for free stuff because, let’s be honest, who wants to pay for CAD blocks if you don’t have to? Found a few sites that seemed promising, with a decent collection of sports-related stuff.
I started browsing through their sports collections, looking for anything basketball-related. They had all sorts of things, like football fields, tennis courts, you name it. Finally, I stumbled upon a section with a bunch of basketball court layouts. Score!
Finding the Right Block
Now, the tricky part was finding a block that was actually accurate and well-drawn. Some of these free blocks can be pretty janky. I downloaded a few different ones to compare. Some were okay, some were just terrible, with lines all over the place and dimensions that didn’t make sense.

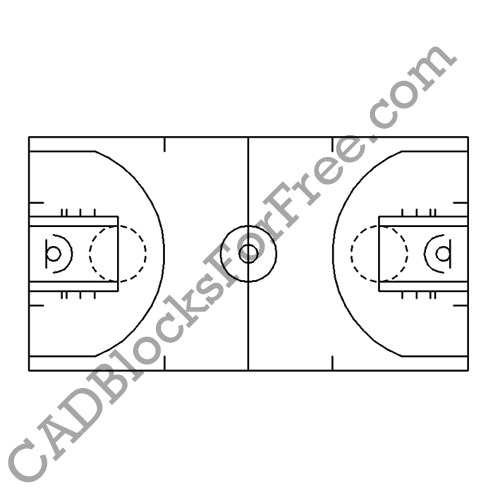

After a bit of trial and error, I found a pretty solid one. It had all the important lines: the free-throw line, the three-pointer, the half-court line, everything looked right. The block was also drawn cleanly, with no weird stray lines or anything like that.
Putting it into CAD
Next, I opened up my CAD software and imported the block I found. This part was easy, just a matter of a few clicks. Once I had it in my drawing, I started playing around with the layout.
I wanted to create a simple site plan, with the court as the main feature. So I added some other elements, like a simple outline for a building, some parking spaces, and some trees. Just basic stuff to give the court some context.
I spent a good chunk of the day just tweaking things, moving stuff around, trying different layouts. It’s amazing how much time you can spend on these things without even realizing it. But it was fun, and I was pretty happy with how it turned out.
Overall, it was a good experience. I learned a bit more about finding and using CAD blocks, and I got to create a cool little basketball court design. Might use this as a starting point for a bigger project down the line, who knows?
- Tip: Always double-check the dimensions and accuracy of free CAD blocks.
- Tip: Don’t be afraid to download a few different blocks and compare them.
- Tip: Have fun and experiment with different layouts!
That’s all for today’s little adventure in CAD. Hope you found it somewhat interesting. Until next time!
